Peavey 22xt tweeter
KSh4,000.00
Titanium diaphragm compression driver with 1″ throat diameter. Frequency response: 500Hz – 18kHz. Impedance: 8 ohms. Mounts directly to all Peavey CH horns with a 1″ throat.
Compare
Description

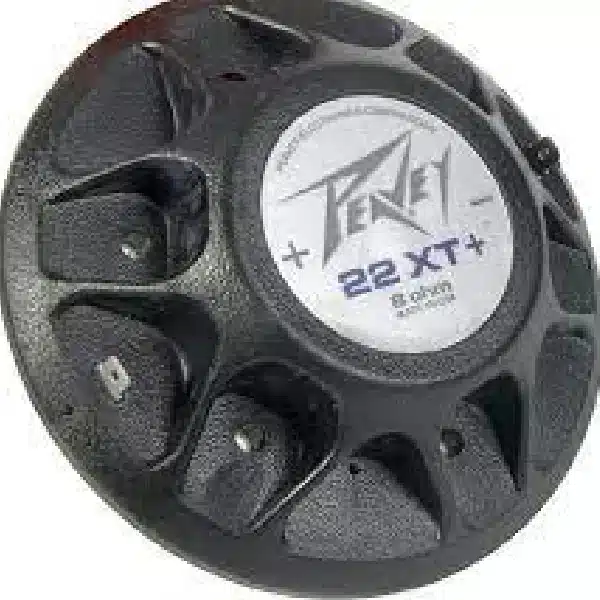

Peavey 22xt tweeter
Titanium diaphragm compression driver with 1″ throat diameter. Frequency response: 500Hz – 18kHz. Impedance: 8 ohms. Mounts directly to all Peavey CH horns with a 1″ throat.
Peavey 22 xt tweeter Specifications

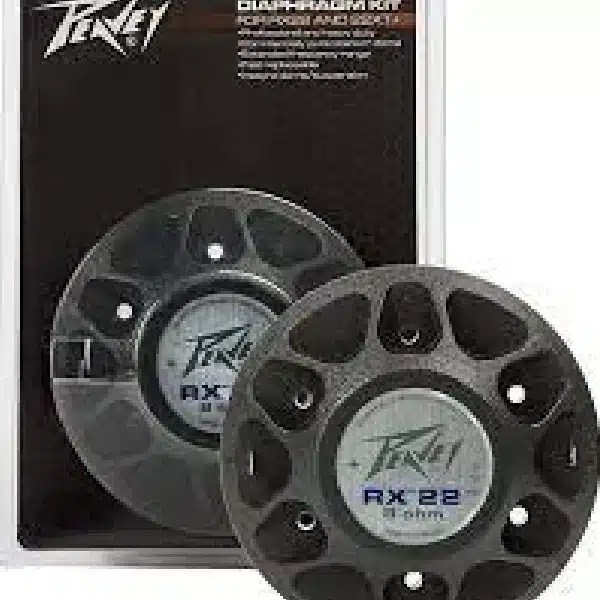

| Combined replacement diaphragm kit for RX™ and 22XT high frequency drivers. |
| RX™ 22/22XT diaphragm kit includes ferrofluid, 22XT spacer gasket, 22XT mounting screws, installation instructions, and material safety data sheet. |
| Weight Packed: 0.35 lb(0.16 kg) |
| Width Packed: 6″(15.24 cm) |
| Height Packed: 9″(22.86 cm) |
| Depth Packed: 2″(5.08 cm) |
- Features
- THE PEAVEY 22XT IS A 1″ EXTENDED HIGH FREQUENCY DRIVER THAT HANDLES 40 WATTS RMS & 80 WATTS PROGRAM
- ULTRA-DURABLE AIRCRAFT-GRADE TITANIUM DIAPHRAGM
- “PRODUCT UPGRADE” OF THE ORIGINAL 22A COMPRESSION DRIVER
- THE NEW 22XTD DIAPHRAGM IS NOW MADE OF TITANIUM
- REPLACEMENT UPGRADE FOR THE PEAVEY 22A & 22T DRIVERS
| H.F. DRIVER | 22XT |
| SPECIFICATIONS | |
| Horn Throat Exit Diameter | 1” / 25mm |
| Impedance | 8 ohms |
| Minimum Impedance | 4.8 ohms |
| DC Resistance | 4.1 ohms |
| Frequency Response | 500 Hz – 20kHz |
| RMS Power Rating | 40 Watts above 500Hz |
| Program Power Rating | 80 Watts above 500Hz |
| Lowest Recommended Crossover | 500 Hz @ 12dB/octave |
| Recommended Crossover | 1.2kHz @ 12dB/octave |
| Sensitivity (SPL) | 111dB w/ CH-2 horn |
| Diaphragm Material | Pure Titanium |
| Voice Coil Diameter | 2” / 50.8mm |
| Voice Coil Material | Copper-Clad Aluminum |
| Nominal Efficiency | 30% |
| Flux Density | 1.75 Tesla |
| Net Weight | 5.6 lbs. |
| MOUNTING INFORMATION | |
| Overall Diameter | 5.25” / 133.3 mm |
| Overall Depth | 3.28″ / 83.3mm |
| Horn Coupling Diameter | 7/8″ / 22.2mm |
| Horn Coupling Thread | Standard 1.375″-18 |
